KW12 Micro Limit Switch TS-1D3 — 16 mm Straight Lever, 3-Pin SPDT, 5 A 250 V, Copper Contacts (10-Pack)

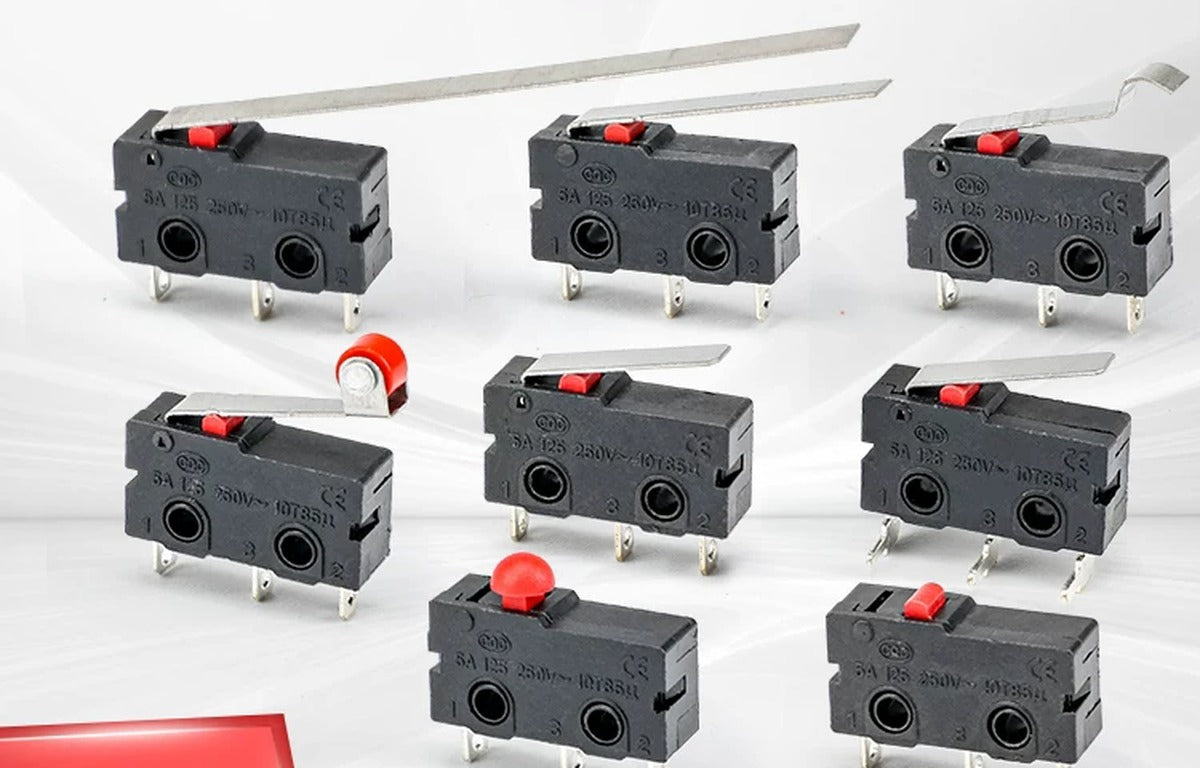

A micro limit switch is a small snap-action switch with a lever that changes state when a moving part touches it. The TS-1D3 (KW12 family) has SPDT copper contacts rated 5 A at 250 V, a 16 mm straight lever and three pins, so it can be wired normally-open or normally-closed without changing the part.

The plain, dependable micro limit switch that ends up in every machine you build. SPDT copper contacts rated 5 A at 250 V, a 16 mm straight lever for a generous actuation arc, and three pins so you can wire it normally-open or normally-closed without changing parts. Sold in packs of ten, because in practice you never need just one — a three-axis machine wants three for homing, and the spares live in the drawer until the next build.

What can you use it for?

• 3D printer X/Y/Z endstops and filament runout detection
• CNC router, laser and plotter axis limits and homing switches
• Robot arm and linear actuator end-of-travel protection
• Door, guard and drawer interlocks on machines and enclosures
• General DIY detection — lid open, tray present, arm at rest

Who is it for?

3D printer and CNC builders, robotics hobbyists, makerspaces and maintenance technicians who go through limit switches in quantity and want a known 5 A copper-contact part rather than the cheapest unmarked one.

Compatibility

• Controllers: Marlin, Klipper, GRBL, RepRap boards, Arduino, Raspberry Pi and PLC digital inputs
• Wiring: three pins — COM, NO and NC — so the same switch serves normally-open or normally-closed logic
• Rating: 5 A at 250 V AC; for low-voltage logic inputs add the usual pull-up or pull-down in your controller
• Lever: 16 mm straight lever; the same KW12 family also offers roller, bent and no-lever versions

Specifications

What's in the box

• 10 × TS-1D3, 16 mm straight lever, 3-pin: 10 × TS-1D3 micro limit switches
