Mono Enclosed Speaker 4Ω 5W with Mounting Holes for ReSpeaker, Raspberry Pi, ESP32 and DIY Audio Projects
Mono Enclosed Speaker 4Ω 5W with Mounting Holes for ReSpeaker, Raspberry Pi, ESP32 and DIY Audio Projects
Couldn't load pickup availability

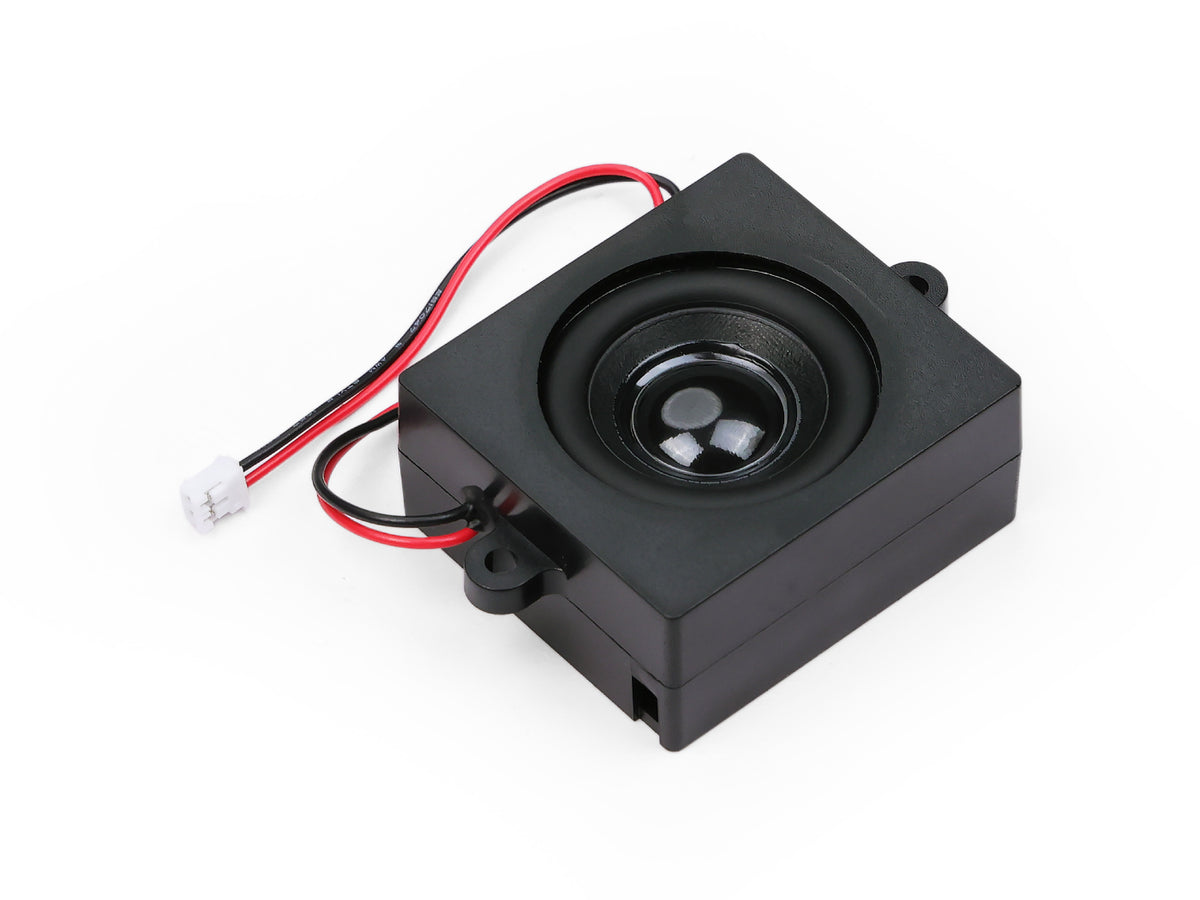

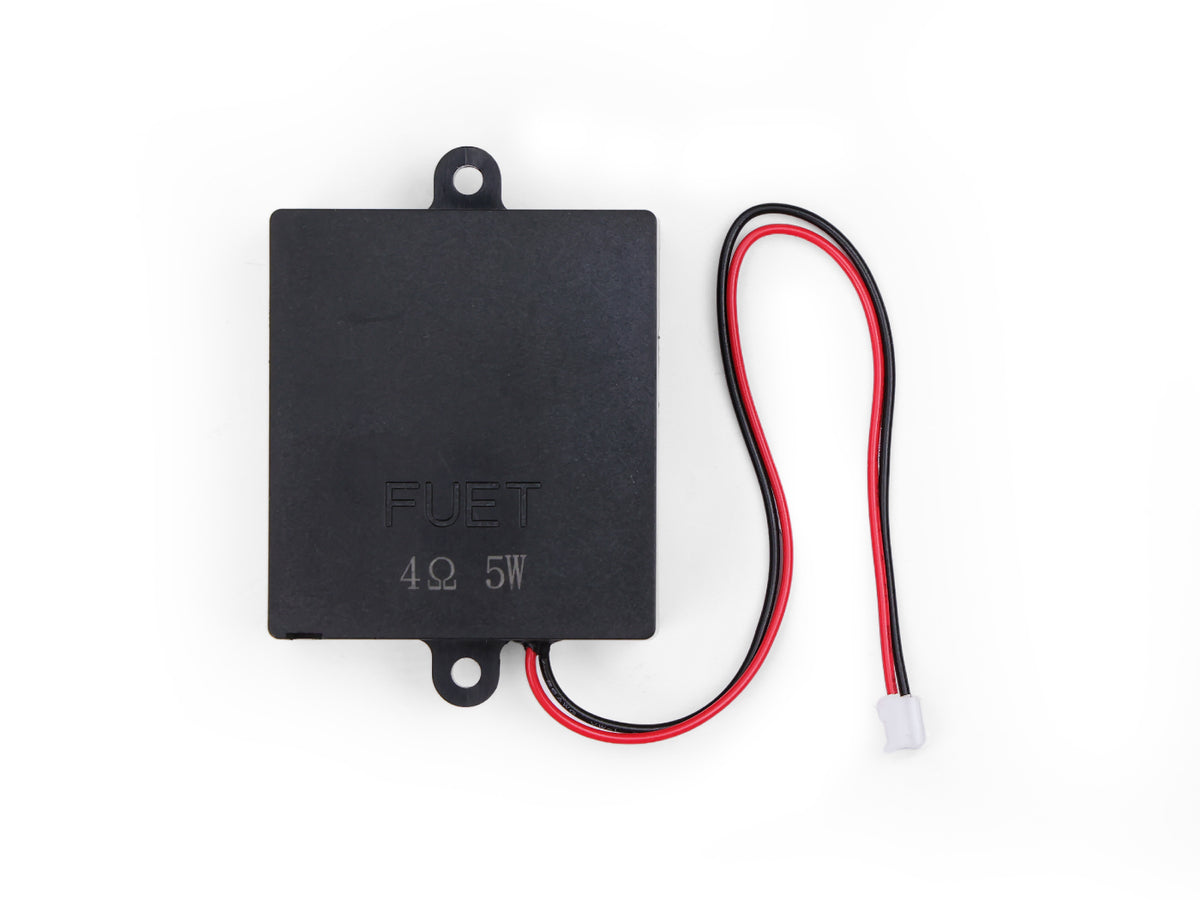

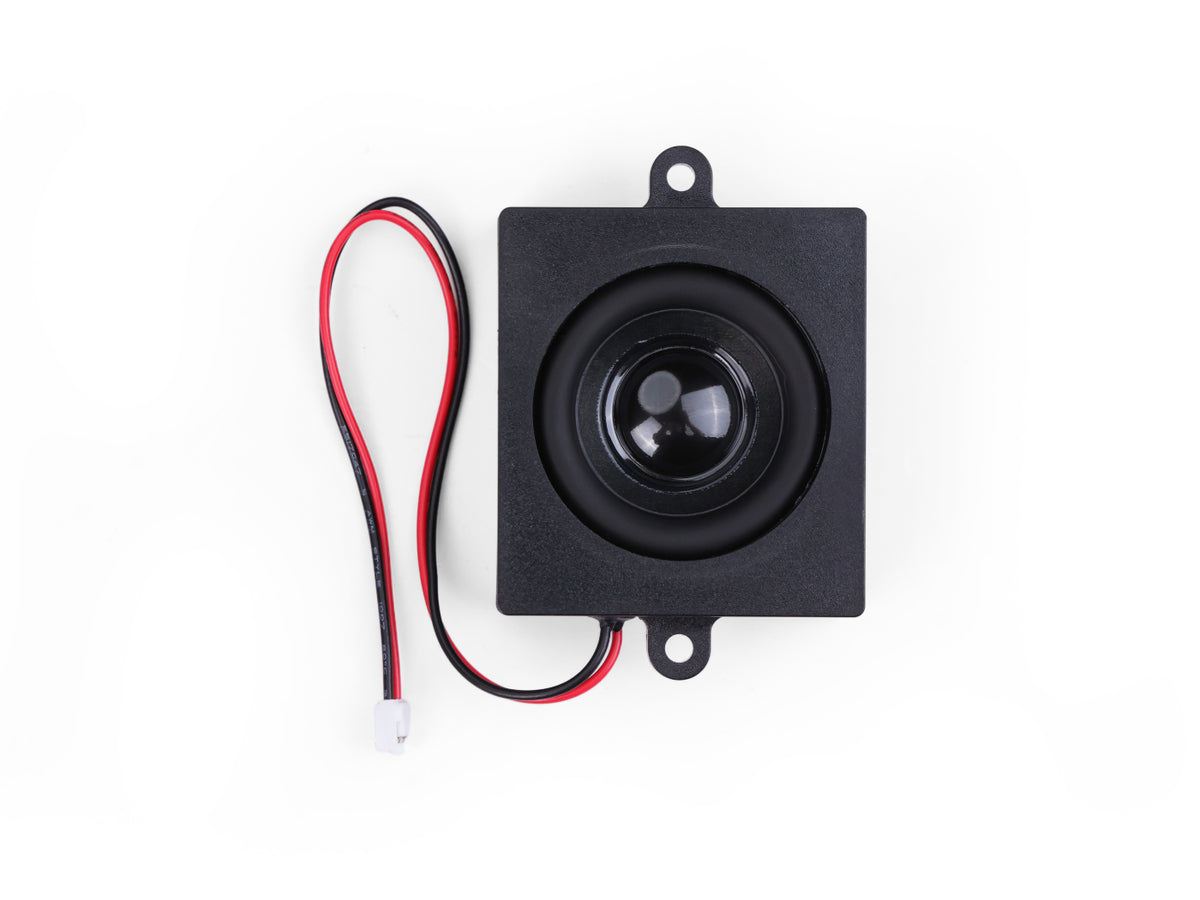

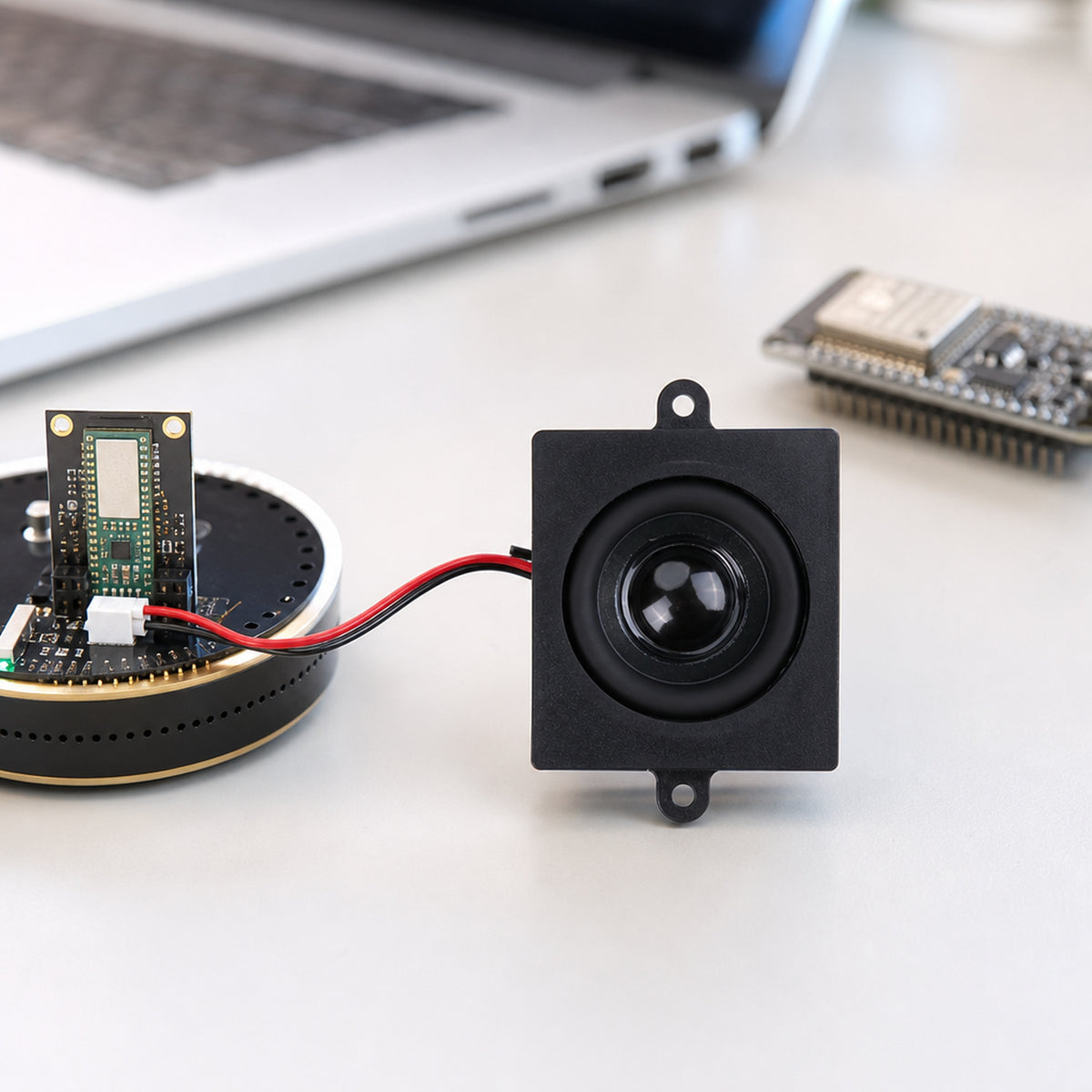

The Mono Enclosed Speaker is a compact sealed-box 4 Ω, 5 W loudspeaker with built-in mounting holes, used to add clear voice or sound output to ReSpeaker voice-assistant boards, ESP32 and Arduino projects, Raspberry Pi builds, robots and other DIY electronics without designing a speaker enclosure.
A small sealed-box speaker that gives voice assistants, robots and Arduino or ESP32 projects a clear, loud voice without designing an enclosure. The 4 Ω, 5 W driver plugs straight into ReSpeaker boards and most small class-D amplifier modules, and the moulded mounting holes let you screw it into a case in seconds.
What can you use it for?
- Voice output for ReSpeaker Lite, ReSpeaker XVF3800 and other voice-assistant boards

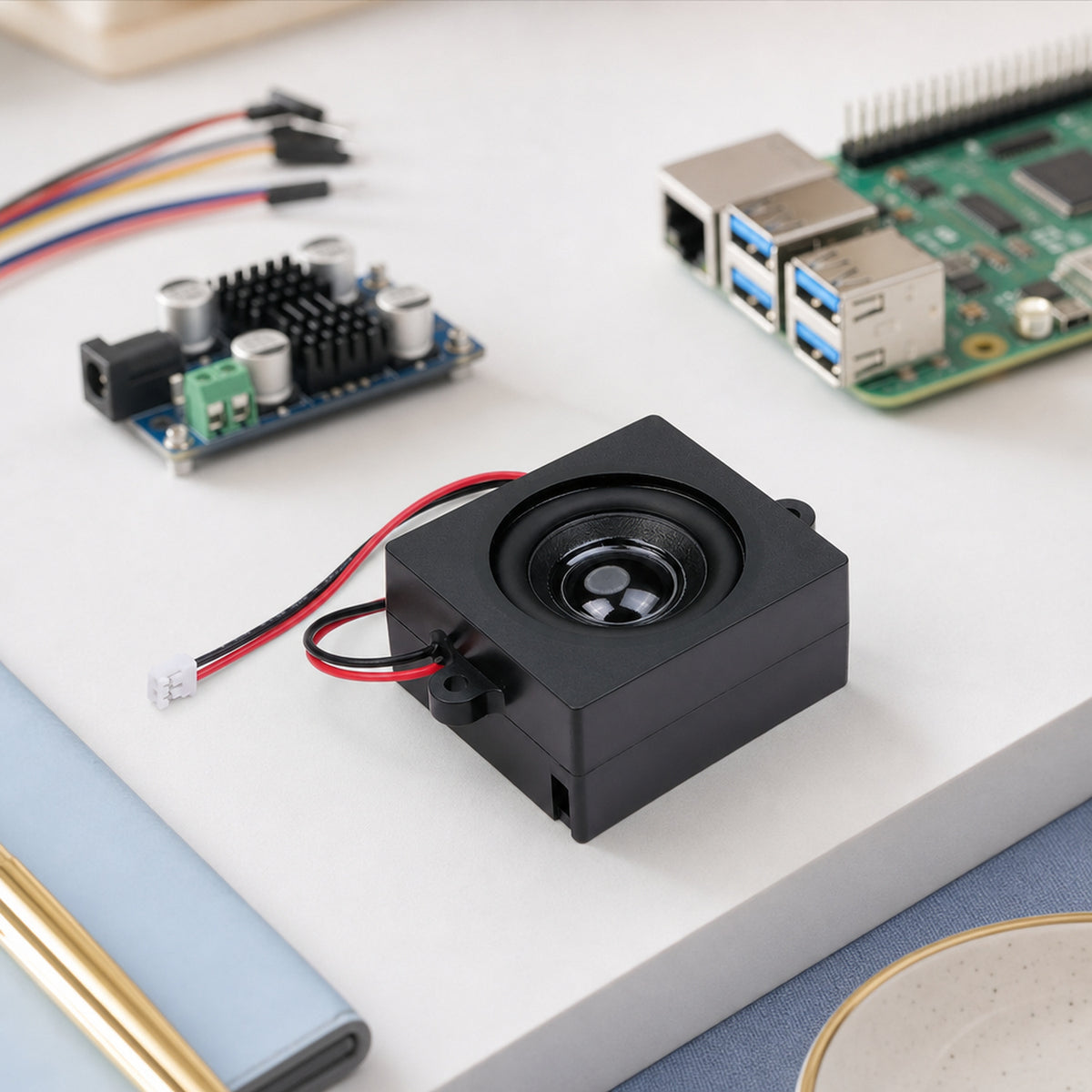

- Speaker for ESP32, ESP32-S3 (XIAO), Arduino and Raspberry Pi projects with a small class-D amplifier
- Robot and smart-home device voice prompts and alerts
- Educational electronics kits and STEM classroom projects
- Portable and battery-powered audio gadgets
Who is it for?
Makers and product developers who need a ready-made, enclosed speaker that screws into a case and sounds clear at 5 W, without sourcing a bare driver and building a box.
Compatibility
- Amplifiers: any 4 Ω-capable amplifier up to 5–6 W, including MAX98357A I2S modules, PAM8403 boards and the ReSpeaker on-board amplifier
- Boards: ReSpeaker Lite, ReSpeaker XVF3800, XIAO ESP32-S3, ESP32 dev boards, Arduino, Raspberry Pi audio HATs

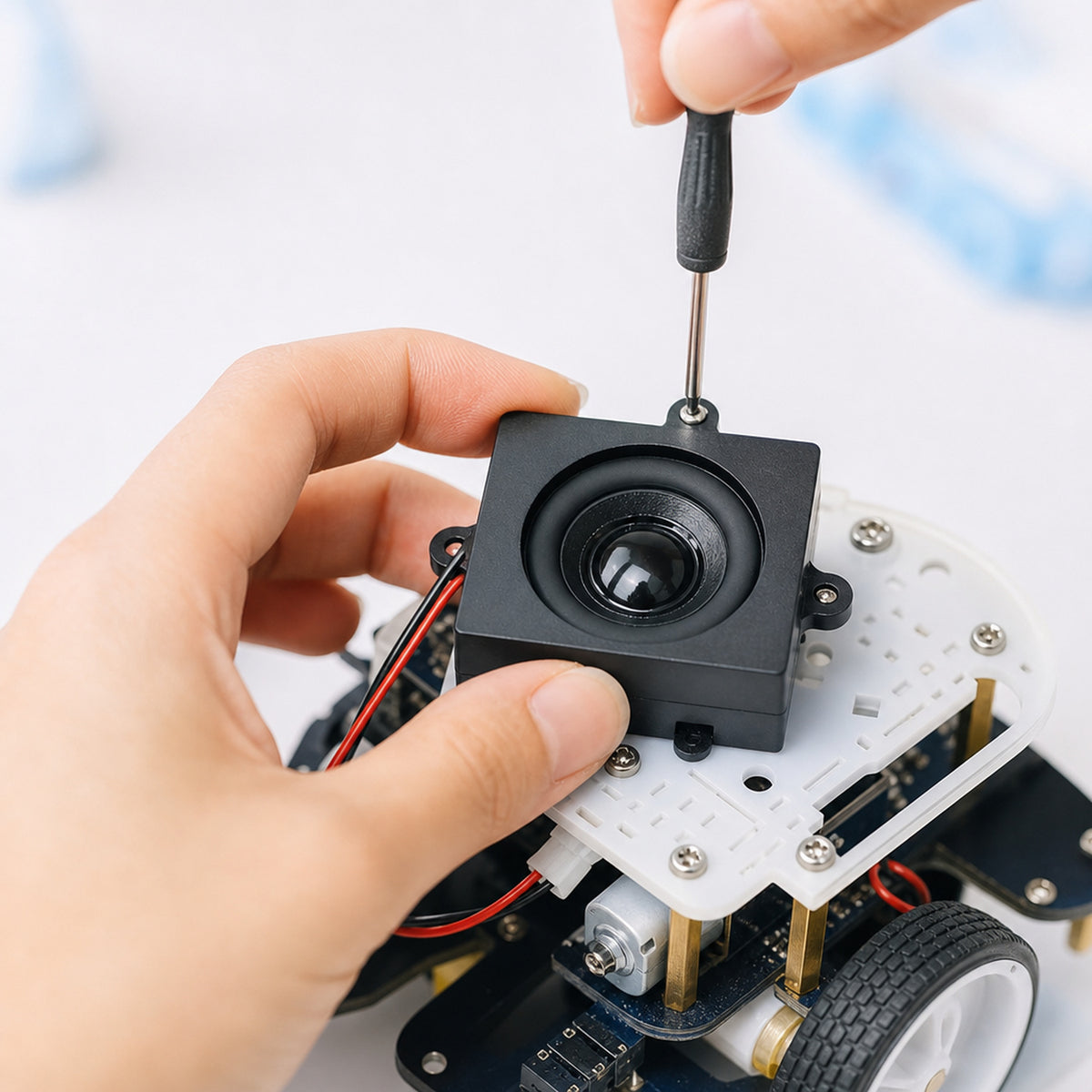

- Mounting: moulded screw holes; fits the ReSpeaker Lite acrylic enclosure kit
Specifications

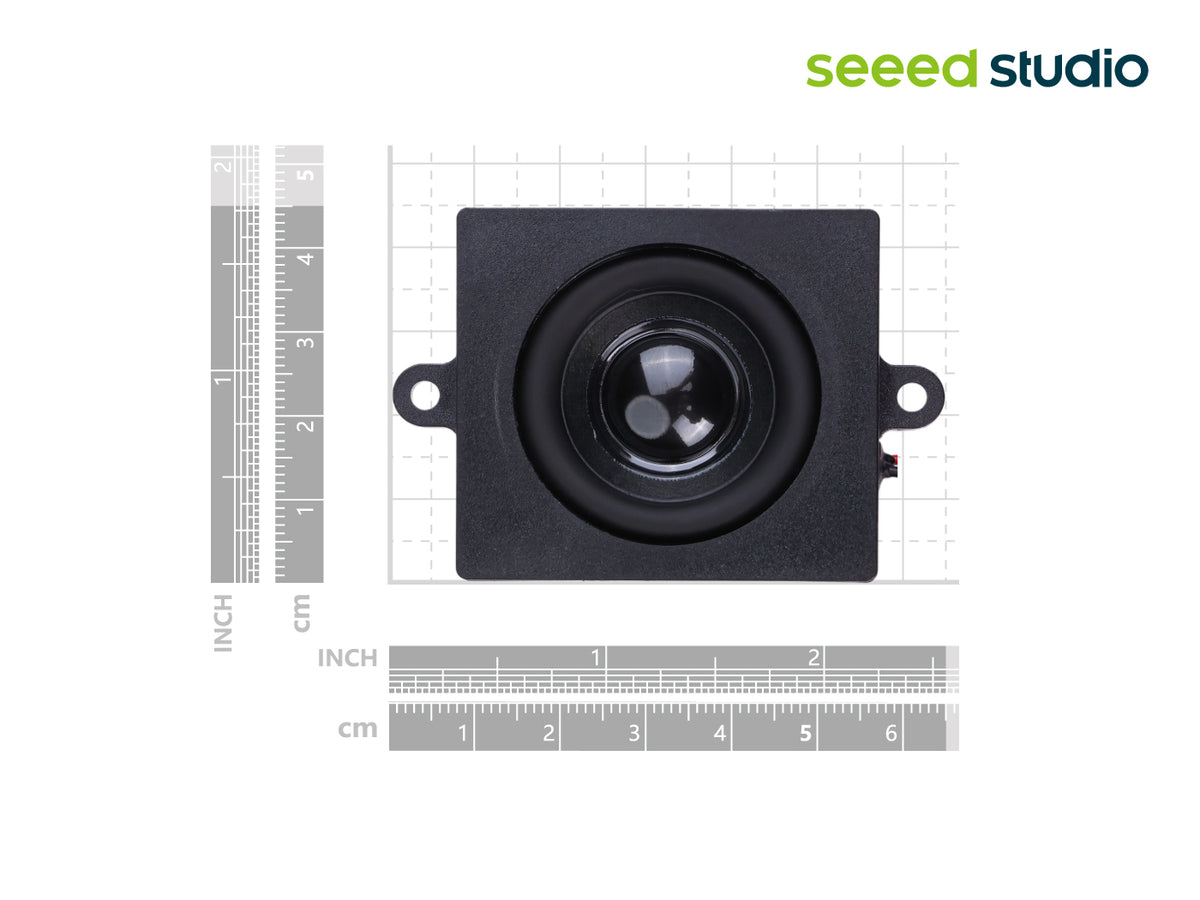

| Size | 50 × 45 × 22 mm |
|---|---|
| Rated impedance | 4 Ω ±15% |
| Rated input power | 5.0 W |
| Maximum input power | 6.0 W |
| Sound pressure level | 88 ±3 dB |
| Frequency range | F0 – 20 kHz (F0 ≈ 500 Hz ±20%, Fb ≈ 125 Hz ±20%) |
| Distortion | 10% max |
| Operating temperature | −20 to +30 °C |
| Storage temperature | −40 to +65 °C |

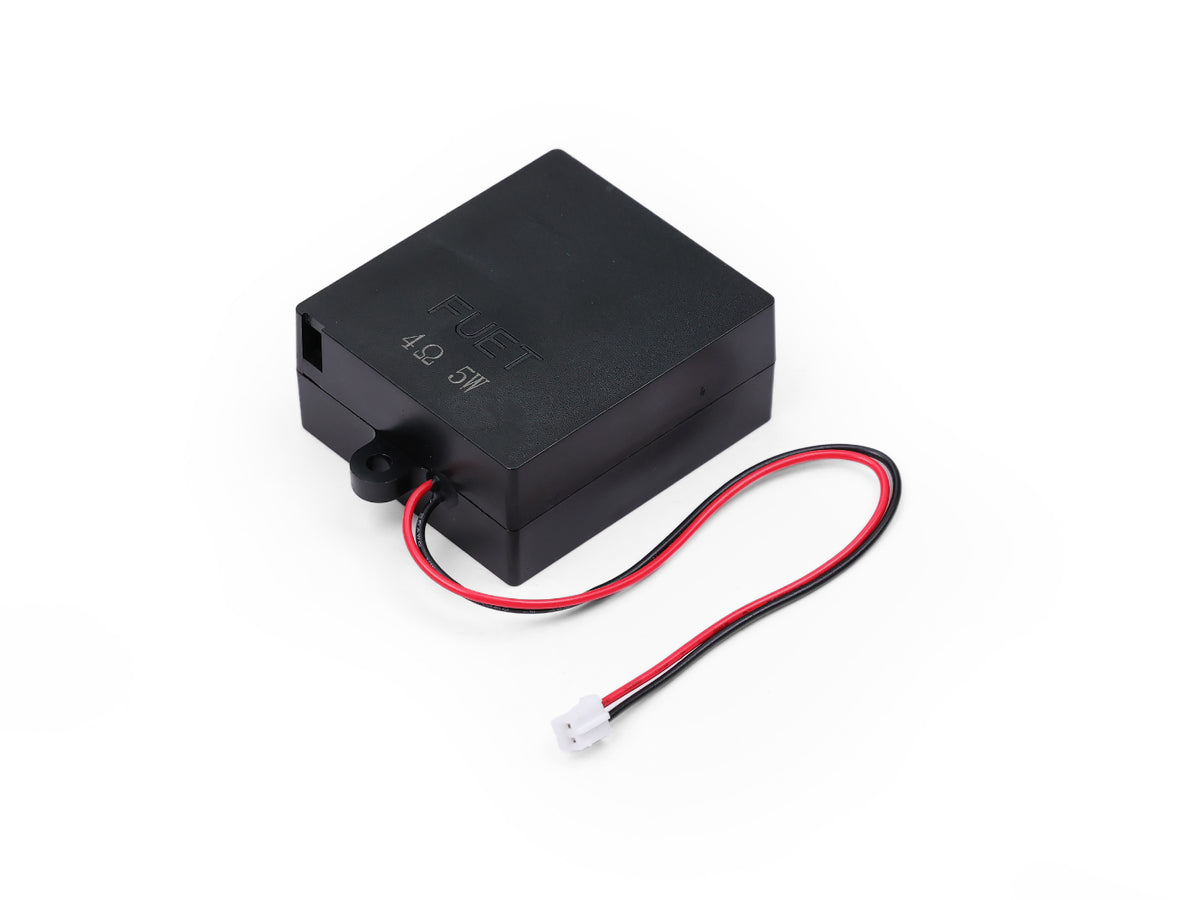

| Mounting | Built-in mounting holes, 2-pin lead |
What's in the box
- Default Title: 1 × Mono Enclosed Speaker 4 Ω 5 W with lead wire
Frequently asked questions
What amplifier do I need for this speaker?
Any small amplifier rated for a 4 Ω load and 3–6 W output works, such as a MAX98357A I2S amplifier, a PAM8403 board or the amplifier built into ReSpeaker boards. Do not drive it above 6 W.
Is it loud enough for a voice assistant?
Yes. With 88 dB sensitivity and 5 W rated power it is clearly audible across a room, which is why Seeed pairs it with the ReSpeaker Lite voice-assistant kit.
Does it need its own enclosure?

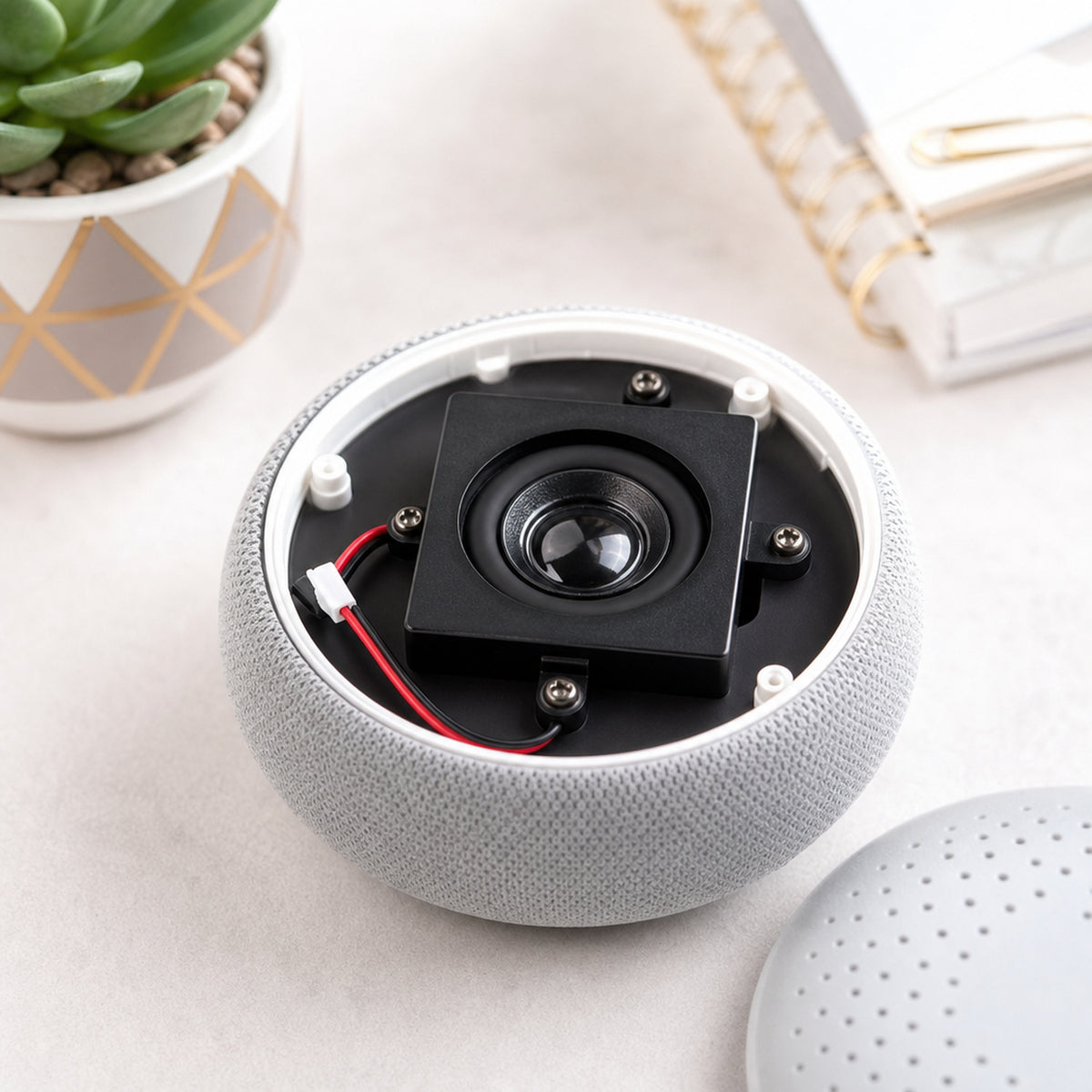

No. The driver is already sealed in a plastic box, so it produces proper bass response on its own. The moulded holes let you screw it into your project case.
What is the connector?
A two-wire lead. It connects to screw terminals or a JST-style speaker connector on your amplifier board; polarity only matters if you use two speakers.
Can I use two of them for stereo?
Yes, use one per channel on a stereo amplifier and keep the polarity the same on both.
